Description:

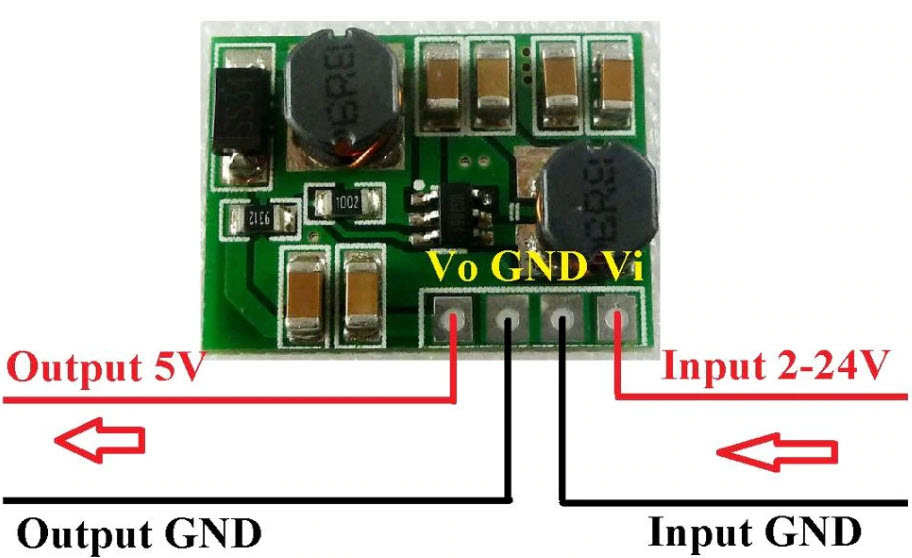

Input voltage DC 2-24V, output DC 5V±5% (No-load voltage is 5-5.4V)

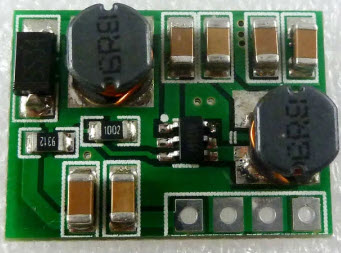

2 in 1 DC DC Boost-Buck Converter Module working frequency 1. 2MHZ.efficiency 70%-90% .
2 in 1 input 2-24V output 5V DC-DC Step-up & Step-down Converter Power Supply Module for Solar charger mobile power.
Operating temperature range: -35~+85 Degrees Celsius
Storage temperature range: -65~+150 Degrees Celsius
2.54mm pin pitch, for MCU Development Board Breadboard friendly.
Size: 21.4mm x 15.6mm x 5.8mm (Very small)
Weight: 2.2g(Very light)
Applications
Battery powered equipment
Breadboard Power Supply
ARM STM32 AVR PIC FPGA CPLD Board
UNO Pro mini–Nano DUE AVR STM32
Small power motors
Camera, Video camera
Toy car
power bank
Phone PDA
LED Lighting
Wireless communication equipment
Audio equipment
Attention
This is a DC-DC voltage converter module, must be noted when using:
1 Input voltage cannot be greater than the maximum input range
2 Output power cannot be greater than the maximum load for a long time
3 Input power must be greater than the output power, because the power consumption of the module itself
