Beskrivelse
Anvendelse af ADXL335 three-axis accelerometer- GY-61
Arduino-GY-61
Detailed Description:

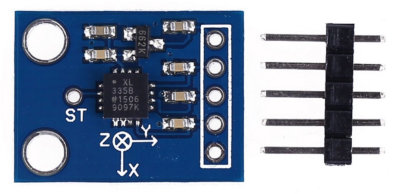

GY-61 – Analog acceleration sensor module using ADXL335
GY-61 is a small, thin, low power, complete three-axis accelerometer voltage output through the signal conditioning at a minimum of full scale ± 3 g measurement range acceleration. It can measure the tilt-sensing applications in the static acceleration of gravity, and movement, shock or vibration due to dynamic acceleration. User CX, CY and CZ pin capacitance X OUT, Y OUT and Z OUT choose the bandwidth of the accelerometer. You can select the appropriate bandwidth depending on the application, X-axis and Y-axis bandwidth of 0.5 Hz to 1600 Hz, Z-axis of the bandwidth of 0.5 Hz to 550 Hz. ADXL335 offers small size, thin, 16-pin, 4 mm × 4 mm × 1.45 mm plastic lead frame chip scale package (LFCSP_LQ).
Pin Description:
1 VCC power supply range of 3-5v
2 X_OUT X-axis output
3 Y_OUT Y-axis output
4 Z_OUT Z-axis output
5 GND Ground
Parameter Description:
3 ~ 5 V power supply
400uA supply current
Analog output communication interface
Operating Temperature -40 ° ~ 85 °
Dimensions (L * W * H) 15.7mm × 20.3mm × 11.6mm
