Beskrivelse

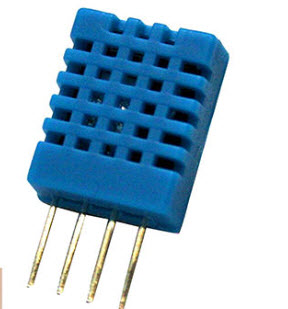

DHT series digital temperature and humidity sensor – full scale calibration, digital output – humidity measurement range: 20% to 90%RH (0-50 ° C temperature compensation); temperature measurement range: 0 to +50 ° C; humidity measurement accuracy: measurement accuracy of ± 5.0%RH temperature: ± 2 ° C response time: <5 seconds; low power consumption
Technical parameters
Power supply voltage: 3.3~5.5V DC
Output: the single bus digital signal
Measuring range: 20-90%RH humidity, temperature 0~50°
The measurement accuracy of +-5%RH: humidity, temperature +-2 °
Resolution: 1%RH humidity, temperature 1 °
Exchangeability: fully interchangeable,
Long term stability: < ± 1%RH/
