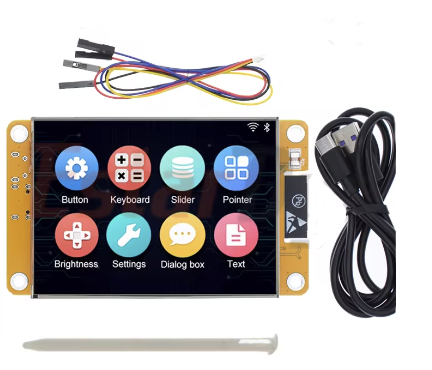

ESP32 Arduino LVGL WIFI & Bluetooth Development Board 2.8 " 240*320 Smart Display Screen 2.8inch - 2432S028LCD TFT Module With Touch WROOM -

ESP32 Arduino LVGL WIFI & Bluetooth Development Board 2.8 ” 240*320 Smart Display Screen 2.8inch – 2432S028LCD TFT Module With Touch WROOM –

185,00 kr.

På lager

Varenummer (SKU): D673 Kategori:

Beskrivelse

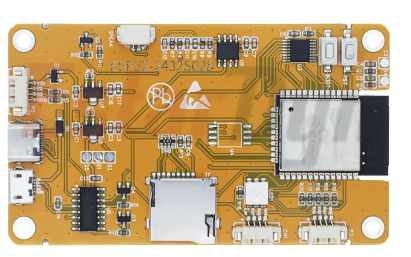

This development board uses ESP32-WROOM-32 module as the main chip. Here are some of its features:

  • Dual-core MCU, integrated WI-FI and Bluetooth functions.
  • Frequency can reach 240MHz
  • 520KB SRAM, 448KB ROM, Flash size is 4MB
  • Module size 50.0×86.0mm
  • Operating Voltage: 5V
  • Power consumption: approximately 115mA
  • Product weight: approximately 50g
  • The module includes:
    • 2.8 inch color TFT display screen with ILI9341 driver chip
    • Display resolution: 240x320px with resistive touch screen
    • Backlight control circuit
    • TF card interface for external storage
    • Serial interface
    • Temperature and humidity sensor interface (DHT11 interface) and reserved IO port interface
  • Can be programmed with: Arduino IDE, MicroPython, ESP-IDF
