Beskrivelse

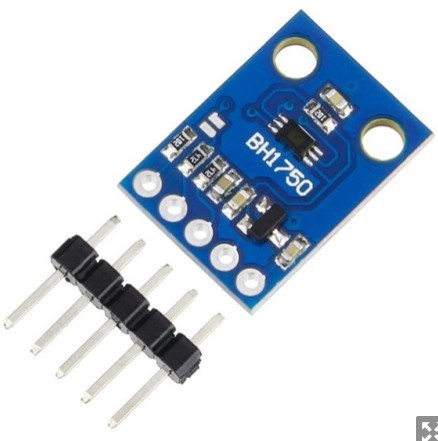

The BH1750FVI is a calibrated digital light sensor that measures the intensity of the ambient light and stores it as a 16-bit number. This sensor can measure the light intensity between 0 and 65535 Lux (L) and can be accessed via the I2C interface. The 7-bit I2C address is 0 × 23 if ADDR pin is connected to GND, and 0x5C if ADDR is connected to VCC.
Properties
Chip: BH1750FVI
Voltage: 3V-5V
Light range: 0-65535 lx
Eksempel
