Specification:

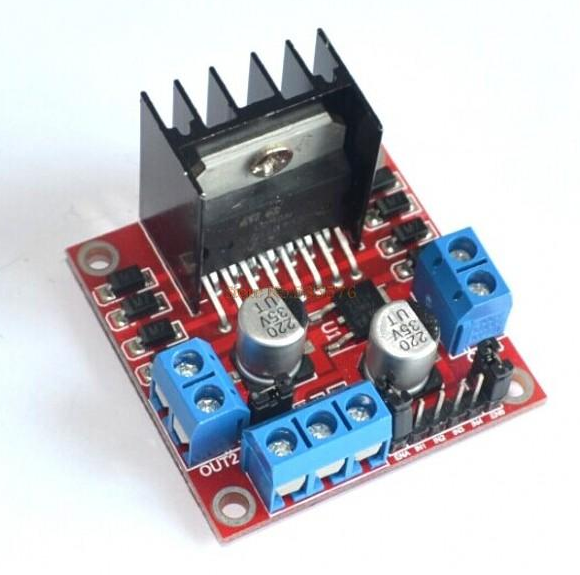

Double H bridge drive
Chip: L298N (ST NEW)
Logical voltage: 5V
Drive voltage: 5V-35V
Logical current: 0mA-36mA
Drive current: 2A(MAX single bridge)
Max power: 25W
Size:43 x 43 x 26mm
Net weight: 26g
Package weight:36g
Note:
This module has a built-in 5v power supply, when the driving voltage is 7v-35v, this supply is suitable for power supply
DO NOT input voltage to +5v supply interface, however ledding out 5v for external use is available.
