Beskrivelse
Den vandtætte temperatursensor DS18B20 bruges i dette Arduino UNO projekt.

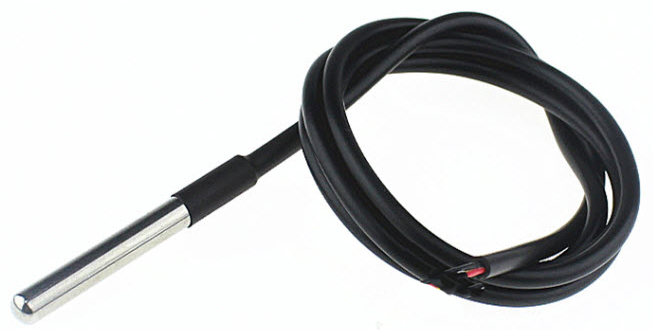

Stainless steel package Waterproof DS18b20 temperature probe temperature sensor 18B20
Probe DS18B20 temperature sensor chip using original
High quality stainless steel pipe anti- rust waterproof package
Stainless steel housing (6 * 50mm), lead length 100cm
After rigorous testing each probe individually wrapped
3.0V ~ 5.5V power supply
9 to 12 adjustable resolution
Temperature range -55 deg ~ +125 deg
No external components , the unique single- bus interface
Output leads : Red (VCC), yellow (DATA), black (GND)
